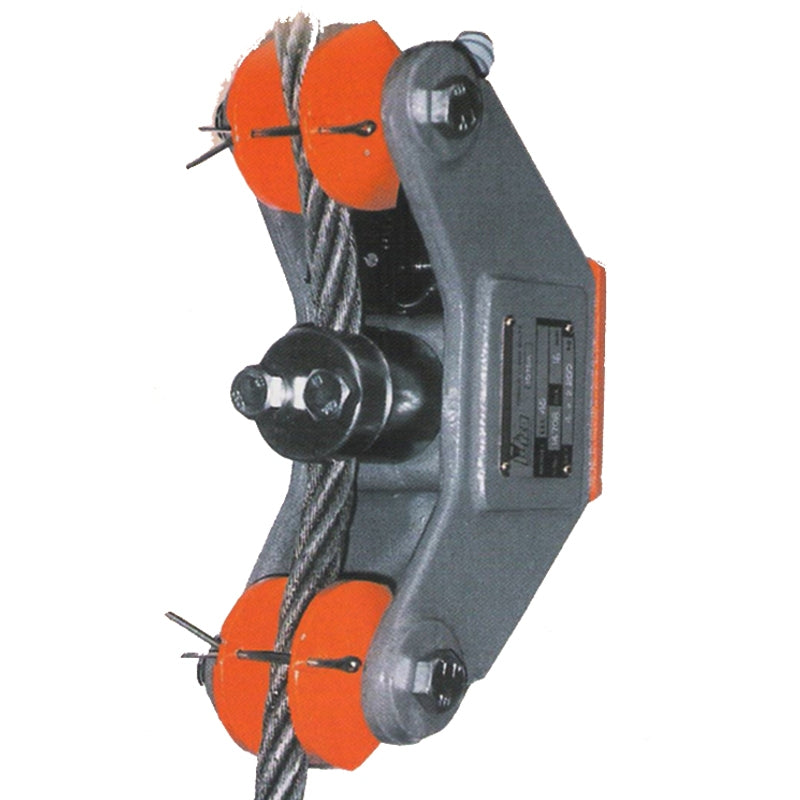

⚙️ Mechanical Load Limiter
⚙️ Mechanical Load Limiter
Reliable Overload Protection for Cranes & Hoists
DeceeTrading supplies robust Mechanical Load Limiters designed to protect overhead cranes and hoists from overload conditions. Engineered for reliability, durability and easy installation, these units improve workplace safety, reduce maintenance costs and minimise equipment downtime.
🏗️ Ideal Applications
- Overhead cranes
- Electric wire rope hoists
- Chain hoists
- Industrial lifting equipment
- Manufacturing facilities
- Mining operations
- Material handling systems
⭐ Key Features & Benefits
- Load Limiter & Top Switch combination available
- Protects cranes and supporting structures against overload
- Quick and easy installation
- Suitable for virtually all crane capacities
- Heavy-duty models available
- Optional slack rope detection
- Factory pre-set or easily calibrated on-site
- Automatic reset by reducing the load
- Improves workplace safety
- Reduces maintenance and downtime
📋 Selection Information
- Safe Working Load (SWL)
- Number of rope falls
- Rope diameter
- Rope type (Standard or Non-Spin)
- Hook configuration
- Application requirements
📦 Available Models
🛠️ Construction & Specifications
| Body | LM4 Aluminium |
| Disc Springs | DIN 2092 / DIN 2093 |
| Guides | LM4 Aluminium |
| Limit Switch | EC Microswitch (Up to 220V AC) |
| Design | Compact – No Loss of Lifting Height |
🛡️ Protective Finish
- Anti-corrosion preparation
- Powder coated finish
- Electrostatically applied coating
- 50–75 micron dry film thickness
- Oven cured at 200°C
⚠️ Important Information
The listed rope load capacities are intended for Class 1 and Class 2 factory duty cranes operating in accordance with BSS 466:1984 (M5 Rating).
For Class 3 and Class 4 heavy-duty applications, please contact DeceeTrading for the correct product selection and technical guidance.
🤝 Why Choose DeceeTrading?
At DeceeTrading, we supply dependable overload protection systems engineered to maximise lifting safety, protect valuable equipment and reduce costly downtime. Our Mechanical Load Limiters are trusted across a wide range of industrial applications for their reliability, durability and ease of maintenance.
Need assistance selecting the correct Load Limiter? Our experienced team is ready to provide expert technical advice and competitive quotations tailored to your lifting application.
