Control Cable Mining

Heavy-Duty Mining Cable

Designed for the toughest mining and industrial environments, our heavy-duty rubber sheathed mining cable delivers exceptional flexibility, mechanical strength and long-term durability. Manufactured with finely stranded copper conductors, high-quality EPR insulation and a rugged polychloroprene outer sheath, it is built to withstand continuous movement, abrasion, oil exposure and demanding operating conditions.

✔ Benefits

  • Heavy-duty construction for mining applications
  • Excellent flexibility for moving equipment
  • High resistance to abrasion and tearing
  • Oil-resistant and flame-retardant outer sheath
  • Ozone-resistant EPR insulation
  • Fine stranded copper conductors for superior flexibility
  • Reliable performance under high mechanical stress
  • Long service life in harsh environments

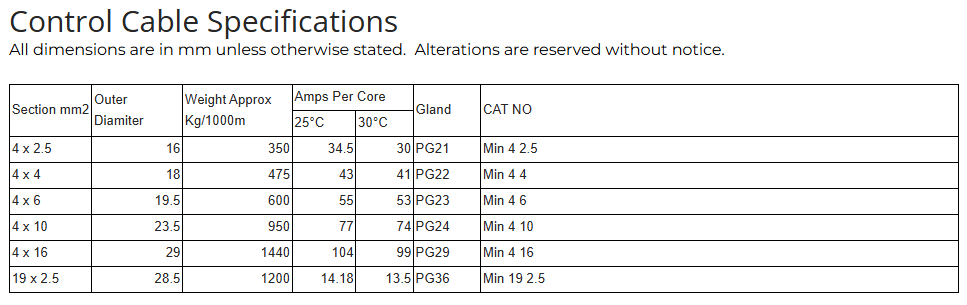

⚙ Specifications

  • Working Voltage: 1000 V
  • Test Voltage: 2500 V
  • Temperature Range: -30°C to +90°C (flexing)
  • Static Temperature: -45°C to +90°C
  • Minimum Bending Radius: 15 × Cable Diameter
  • Fine stranded copper conductors (VDE 0295 Class 5)
  • Oil-resistant CR rubber outer sheath
  • Yellow outer sheath for high visibility
