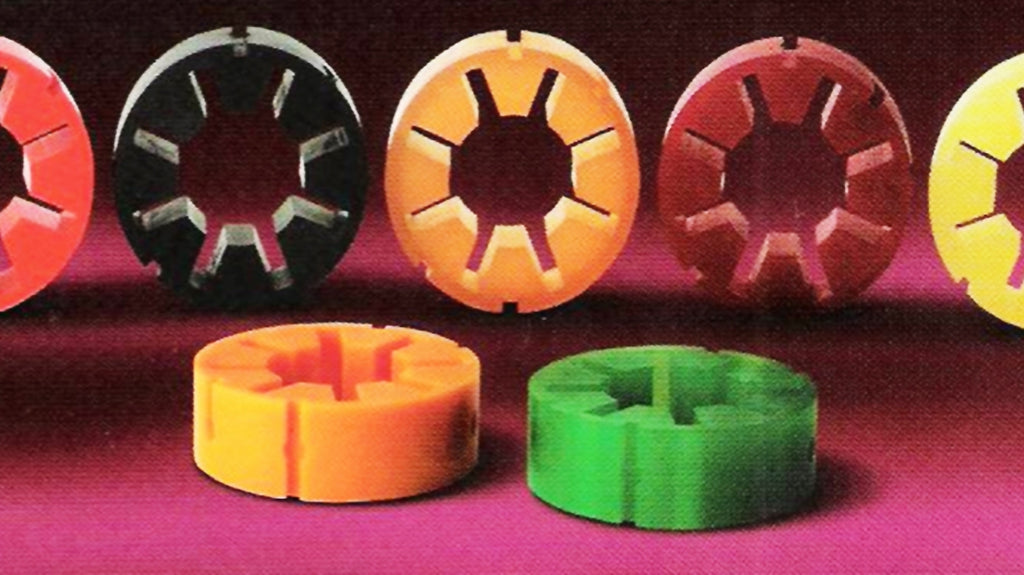

⚙️ Samiflex Elastic Inserts
High-performance polyurethane inserts engineered for reliable power transmission and vibration control.
🔩 Premium Polyurethane Construction
Samiflex elastic inserts are manufactured from a specially developed polyurethane compound designed to meet the demanding requirements of high-performance elastic couplings.
Available in multiple compounds and hardness ratings, the correct insert can be selected to suit specific torque, damping and application requirements.

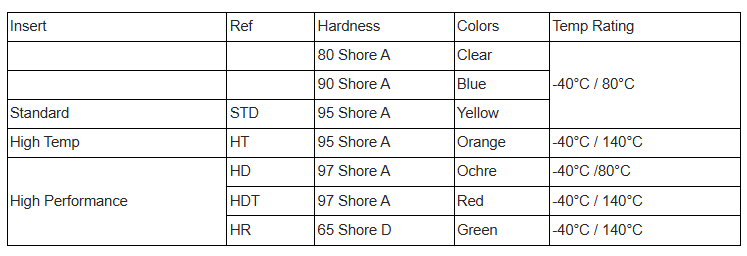

🟡 Insert Types & Hardness Ratings
Standard Insert
95 Shore hardness
Yellow colour
Reliable general industrial performance
HD Insert
Ochre colour
High-performance compound
Up to 40% increased torque rating
HDT Insert
Red colour
Heavy-duty compound
Designed for demanding applications
📐 Coupling Selection Method
Collect application details including service factor, driver kilowatt rating, RPM, and shaft details.
Determine the required service factor based on the application classification.
Calculate the required coupling rating:
Kw / 1000 RPM = (Kw × 1000 × SF) ÷ RPM
Select a coupling with a higher rating and confirm RPM capacity and bore requirements.
🧮 Selection Example
Power: 75 Kw @ 1500 RPM
Driven Equipment: Screw Compressor
Service Factor: 2
Calculation:
(75 × 1000 × 2) ÷ 1500 = 100 Kw/1000 RPM
Selected Coupling: A4B
Bore Capacity: 75 mm
Maximum Speed: 3275 RPM
DBSE: 140 mm
✔ Suitable for this application
