TORQUE LIMITER
TORQUE LIMITER

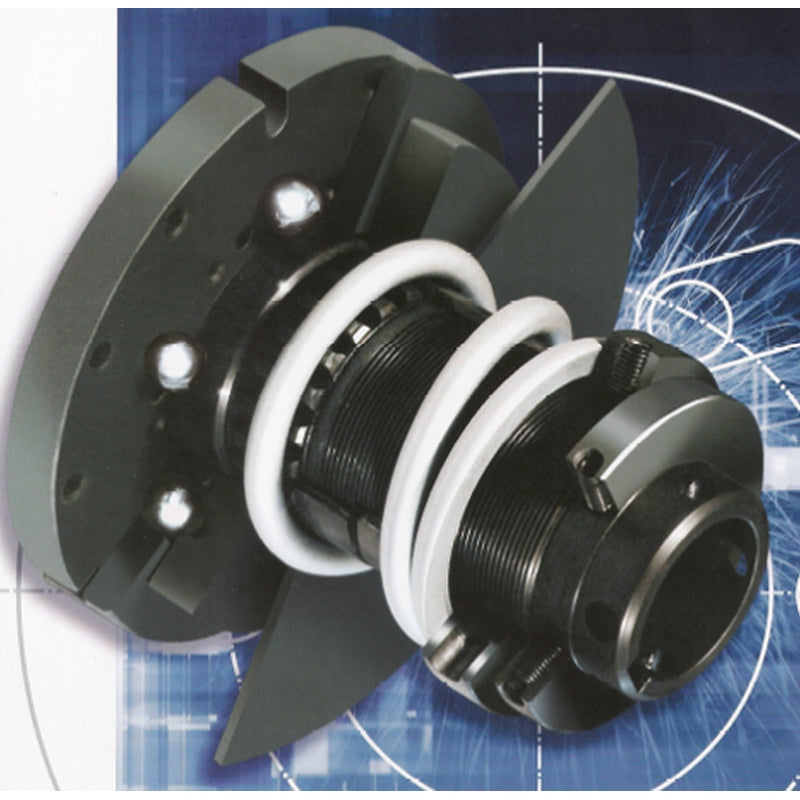

⚙️ Autogard Series 200 Torque Limiter
Advanced mechanical overload protection designed to protect critical industrial equipment.
🛡️ Precision Overload Protection
At Decee Trading, we supply advanced overload protection solutions designed to protect machinery from unexpected torque spikes and mechanical damage.
The Autogard Series 200 Torque Limiter is a state-of-the-art mechanical safety device that automatically disengages when a pre-set torque value is exceeded.
The trip torque is carefully selected above normal starting and operating torque, but below the level where equipment damage could occur.
⭐ Why Choose Autogard Series 200?
Mechanical Protection
Disconnects harmful overload forces before damage occurs.
Precision Setting
Torque release point can be accurately adjusted for each application.
Equipment Safety
Protects motors, gearboxes and driven machinery.
Industrial Reliability
Manufactured using advanced production technology and quality standards.

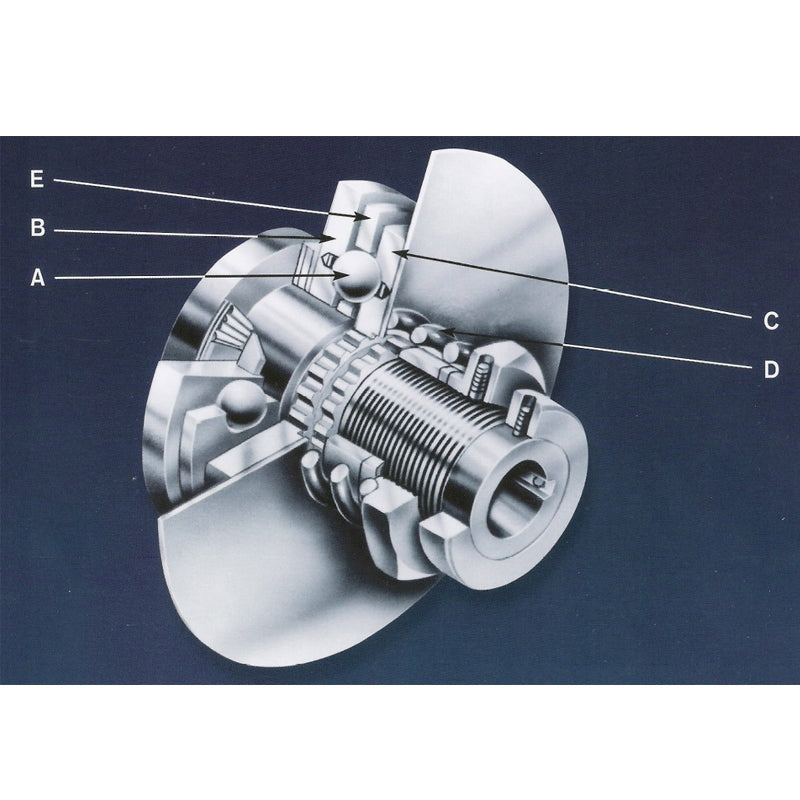

⚙️ Operating Principle
Drive Balls
Balls are seated inside precision detents within the drive plate and slide plate.
Spring Loading
The plates are held together under controlled pressure from the spring assembly.
Torque Release
When overload occurs, balls roll out of position and separate the drive components.
🚨 Disengagement During Overload
When the driven machine jams or overload exceeds the preset torque value, the drive balls roll out of their seats and force the drive plate and slide plate apart.
The balls are retained by the cage plate and move freely along the flat surfaces, removing harmful torque from the drive train and preventing equipment damage.

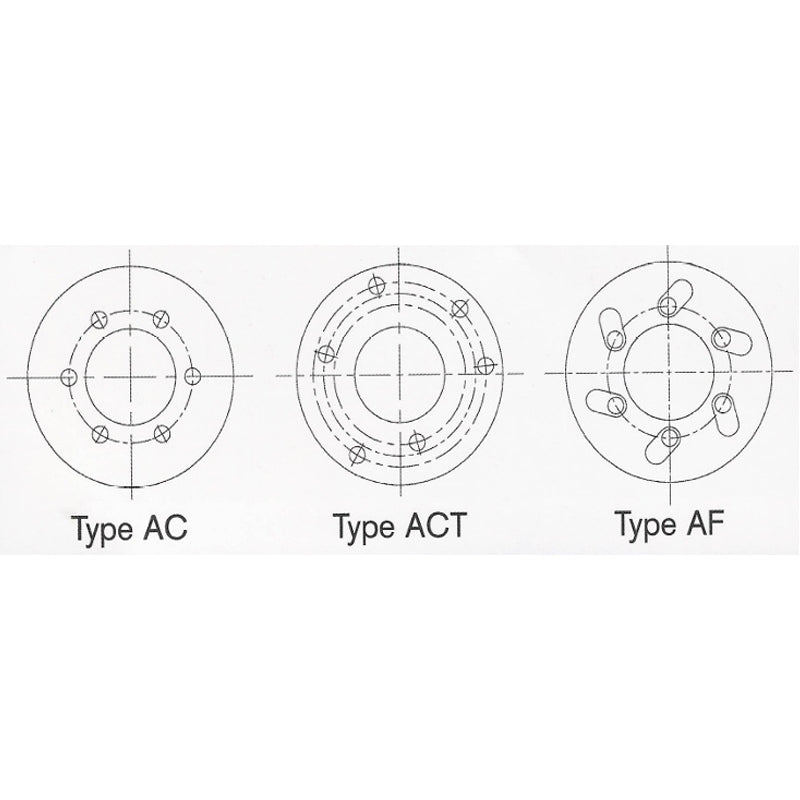

🔄 Re-Engagement Options
Type AC - Automatic Random Reset
Ball detents and cage holes are equally spaced, allowing automatic reset after tripping in either direction. Immediate shutdown is recommended to prevent detent wear.
Type ACT - Automatic Synchronous Reset
The balls must return to their original position before resetting. Re-engagement occurs within two revolutions in the opposite direction.
Type AF - Free Wheeling Disengagement
Allows higher operating speeds by moving balls away from the detents onto a separate running track. Reset is achieved manually by locking and reversing the drive.
🏭 Typical Applications
🤝 Decee Trading Reliability
Decee Trading provides dependable mechanical protection solutions engineered to reduce downtime, protect valuable equipment and improve operational reliability in demanding industrial environments.
