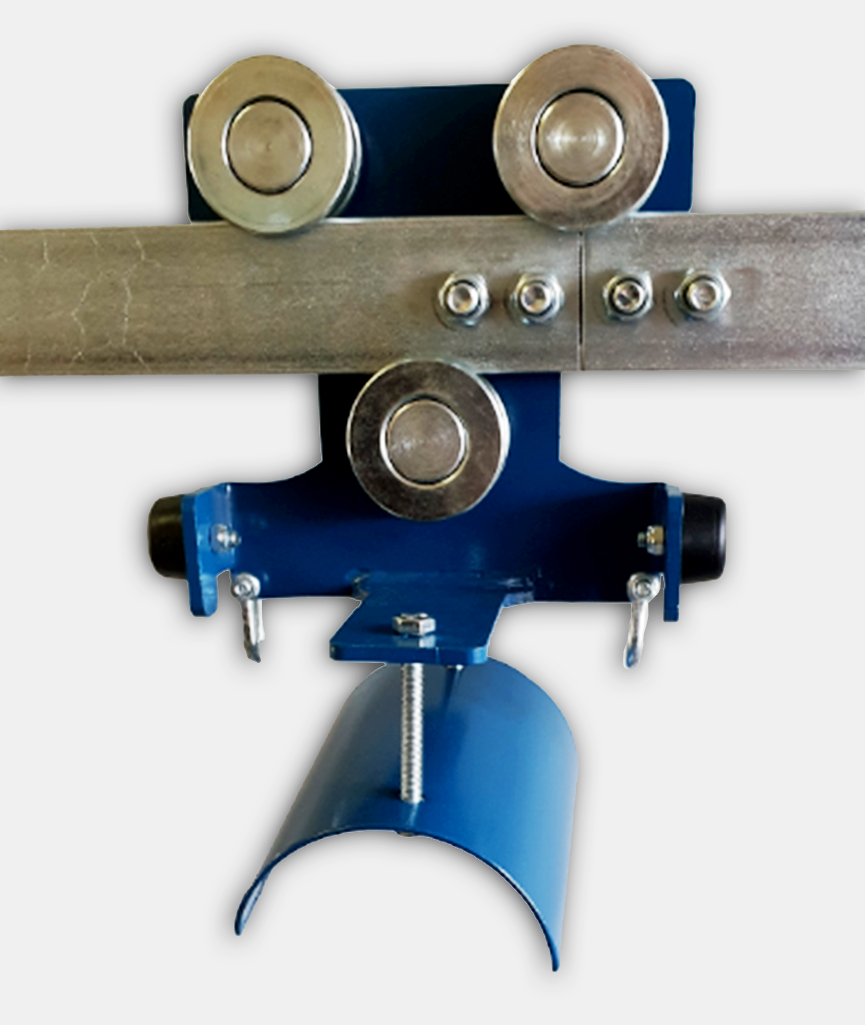

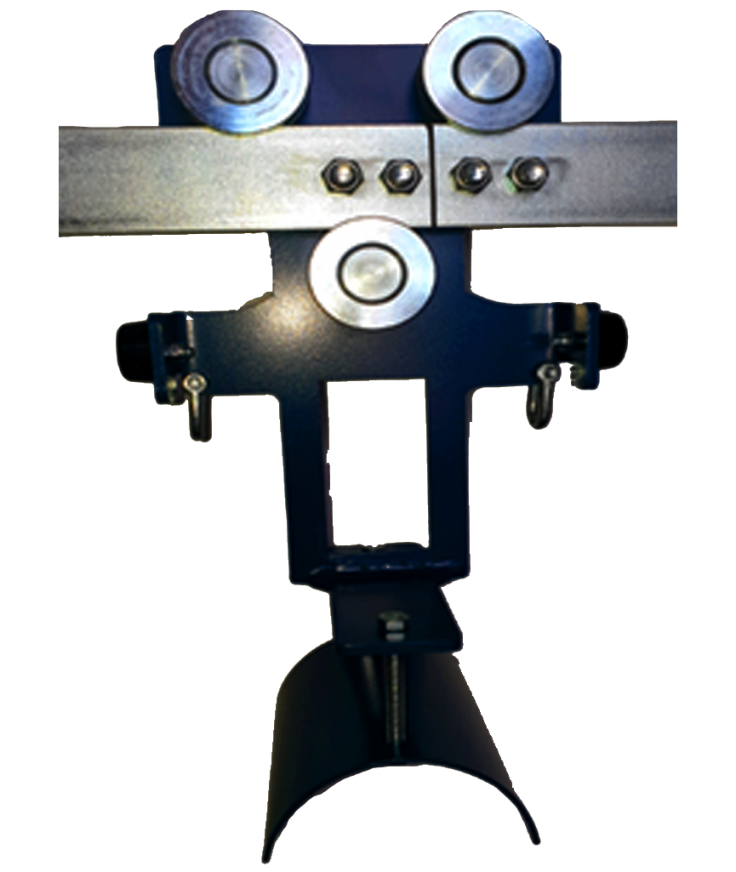

⚙️FLAT BAR CABLE CARRIER
Engineered for Reliable Industrial Cable Management
DeceeTrading manufactures and supplies premium Flat Bar Cable Carrier Systems designed to provide reliable cable management in demanding industrial environments. Built for durability, flexibility and long-term performance, our systems are trusted across a wide range of industrial applications.
🏗️ Ideal Applications
- Electric, pneumatic and chain hoists
- Power supply and control systems
- Tripper cars
- Stackers and reclaimers
- Monorail systems
- Curved rail applications
- Surface and underground installations
- Heavy dust and dirt environments
⭐ Key Features & Benefits
- Adjustable for 40 × 6 mm and 50 × 6 mm flat bar rails
- Built for harsh industrial environments
- Rails can be bent on-site for curved installations
- Epoxy Powder Coated or Electro-Galvanized finishes
- Optional Double-Deck configuration
- Quick replacement of wheels and components
- Rubber buffers reduce vibration and noise
- Supports flat and round cables or hoses
- Optional 304 & 316 Stainless Steel construction
📋 Technical Specifications
| Carrier Length | 140 mm |
| Carrier Width | 120 mm |
| Weight | 1.3 kg |
| Body Material | 4.0 mm Mild Steel |
| Cable Capacity | 85 × 35 mm |
| Load Capacity | 70 kg |
| Wheel Size | 45 mm Flanged |
| Support Spacing | 1.5 m (0.5 m on curves) |
📦 System Components
- Flat Bar Rails
- Joint Sets
- Rail Hangers
- Cable Carriers
- Master Carrier
- End Clamp
