High Temperature Single Core Cable

Thermosil / SIAF Single Core

Engineered for Extreme Heat • Exceptional Flexibility • Reliable Industrial Performance
Thermosil / SIAF Single Core Cable is designed for demanding high-temperature applications where conventional PVC-insulated cables become brittle and fail. Manufactured with a flexible tinned copper conductor and premium silicone rubber insulation, it delivers outstanding performance in steel works, metallurgical plants, hot-rolling mills, coking plants and foundries. The silicone insulation offers excellent resistance to oils, fats, diluted acids, ozone and oxidation. In the event of fire, the insulation forms a protective silicon dioxide layer around the conductor, helping maintain circuit integrity and improve short-circuit resistance.

✔ Key Benefits

  • Designed for continuous high-temperature operation
  • Operating temperature from -60°C to +180°C
  • Short-circuit resistance up to +200°C
  • Excellent flexibility for easy installation
  • Resistant to oils, fats and diluted acids
  • Excellent resistance to oxygen and ozone
  • Fire-resistant silicone insulation technology
  • Ideal where PVC cables become brittle
  • Long service life in harsh industrial environments

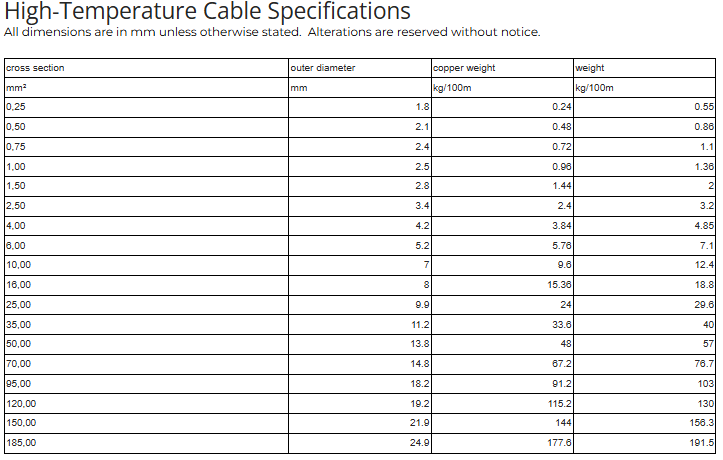

⚙ Technical Specifications

Conductor Tinned Copper
Stranding VDE 0295 Class 5
Insulation Silicone Rubber
Temperature Range -60°C to +180°C
Short Circuit Up to +200°C
Bending Radius 15 × Cable Diameter
Applications Steel Works, Metallurgical Plants, Hot Rolling Mills, Coking Plants & Foundries
